Description

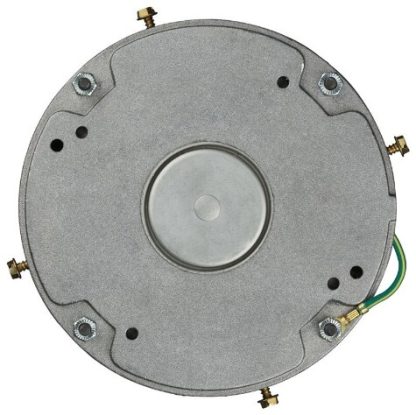

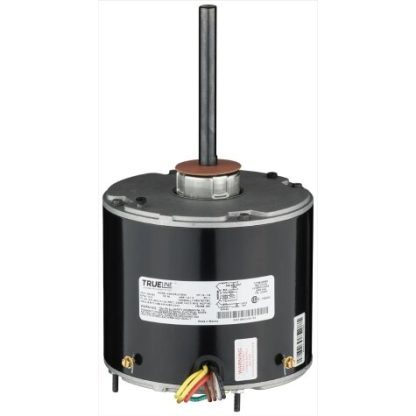

Rheem W51-MHCJA1-02 PROTECH Condenser Motor – 1/6-1/3 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM
PSC Outdoor Condenser Motors
- Thru-bolt or belly band mounting
- Self-aligning bearing
- Reversible
- 48 frame
- 825 or 1075 single speed
- ½” shaft diameter
- 4 ½” or 5” shaft length
-
/ Fits Models US MOTORS 3322; MARS 10458; WAGNER WG840465; CENTURY ORM5458; PACKARD 45458B - The TrueLine PSC motors offer corrosion resistance for longer life in high humidity environments including a unique rotor treatment and varnished dipped windings. Suitable for residential and light commercial HVAC applications. The outdoor condenser motors have single speed with reversible rotation.
-
Application Condenser Bearing Type Sleeve Drive Type Direct Drive FLA at 208V (A) 1.80 FLA at 230V (A) 1.30 Frame Size 48 Frequency (Hz) 60 High Speed (RPM) 1075 HP 1/6 to 1/3 Input Voltage (V) 208 | 230 Keyed/Flat Shaft Length (in.) 4 Motor Body Diameter (in.) 5-5/8 Motor Body Length (in.) 4-13/16 Mounting Shell-band | Shell-screw | Thru-bolt No. of Phases 1 No. of Speeds 1 Overall Motor Length (in.) 9-13/16 Overall Shaft Length (in.) 5 Rotation Direction (OSE) Reversible Run Capacitor (uF/V) 10/370 Shaft Diameter (in.) 1/2
