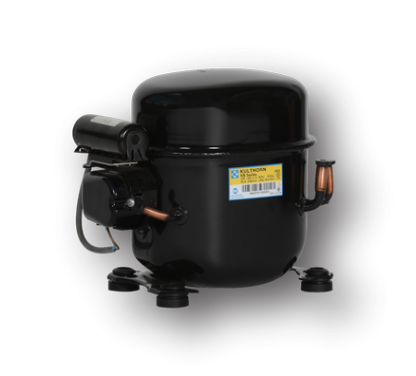

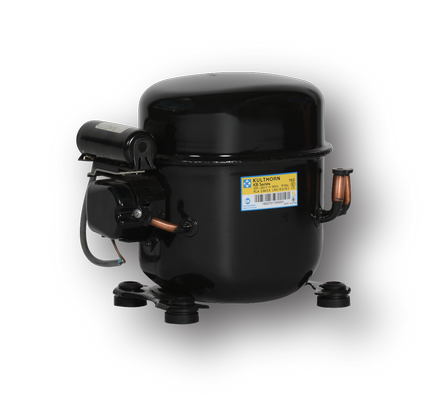

KB2410Y1 COMPRESSOR LBP HST

Description

KB2410Y1–COMPRESSOR LBP HST 1/4HP 1024 BTU 115V

Kulthorn® KB Series hermetic compressors range between 3/20 to 3/8 horse power, and are designed to work well for residential/commercial refrigerators and ice makers.

Features/Benefits

• Compressor Type – Reciprocating
• Oil Type – Polyolester Oil
• Motor Type – C.S.I.R. ; 2 Pole 3,500 RPM
• Motor Starter Type – Current Relay
• Motor Protector Type – External 3/4″
• Rated Load Amps – 3.90
• Evaporating Temperature Range – LBP
• Oil Charge: 300 cc.
• Displacement: 9.42 cc.
• Weight (with oil and accessories): 23.7 LBS.
• Input Power: 260 WATTS
• Motor Torque: High Start Torque
• Discharge Dia.: 0.26″ I.D.
• Suction Size Dia.: 0.38″ I.D.
• Mounting Dimensions: 6.5″ X 4.02″
• BTU: 1024 BTU @ -10°F
• Refrigerant: R134a
• Phase: 1 PH
• Volts: 115 VAC
• HP: 1 / 4 HP
